MINIATURE INJECTION MOLDING MACHINE MODEL 70

RReciprocating Screw Vertical Injection Molding Machines

The Mini-Jector model 70 is a self-contained, mini injection molding machine ideal for polymer test labs, universities, and other material testing or prototype applications. This reciprocating screw injection molding machine uses stirring and compression action to create more even heat dispersion through the plastic, so it is suitable for polymers with a narrow heat range. It can also be used for testing dyes and mixing colors with more uniformity.
The Model 70 answers the need for a precision insert molding machine that is compact and easy to operate. Featuring a vertical down-acting hydraulic clamping system and vertical injection unit, it is uniquely configured for

Download a digital copy of our MINIJECTOR Product Brochure that features valuable information on our MODEL55 machines.

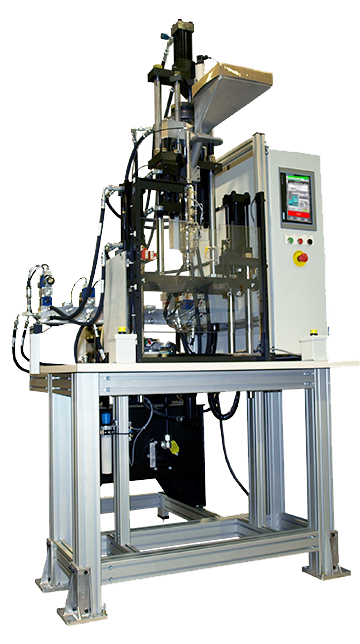

Minijector Model 70

What Can The MINIJECTOR Model 70 Do?

Production and Assembly Line

Bridge Production

Polymer lab & research lab testing

Universities & Technical Schools Testing

How Our Injection Molding Machines Work

Mini-Jector machines use mechanical advantage to generate a substantial vertical clamping force (up to 10 tons with the Model 70) using only a small amount of inputted effort. This force is maintained through the injection cycle.

Model 70 System Mechanics: The Model 70 features a vertical down-acting clamp orientation paired with a vertical injection unit. It uses direction control valves with plug-in connectors to control the screw speed, injection pressure, and injection speed. A direct hydraulic drive powers the screw injection unit, allowing operators to easily place inserts directly into the mold for a flawless sequence.

Based on these and other innovative design elements, the Mini-Jector can produce injection molded parts at a significantly lower cost than larger machines.

injection molding machine

Download Our Brochure

Download a digital copy of our MINIJECTOR product brochure that features valuable information on our MODEL45, MODEL50, MODEL55, and MODEL70 products. Product specifications include:

  • Model Differences
  • Clamping Pressure
  • Maximum Mold Size
  • Injection Pressure
  • Power Requirements
  • Production Dimensions
Minijector Brochure

Model 70

  • 10 ton hydraulic vertical clamp with 6.00” stroke
  • 10.75″ maximum daylight opening
  • Mold protect low pressure closing system
  • Reciprocating screw with 2.5:1 ratio and flame hardened flights
  • 230 /460 V single and three phase power options
  • Screw assembly choice of bore sizes: 7/8”,  1 1/16”
  • 1 – 2.00 ounce shot size
  • Carriage cylinder has a 4.00” stroke

Model 75

  • 12.5 ton hydraulic vertical clamp with 5.00” stroke
  • Maximum daylight opening of 10.75” (without shuttle) and 10.00” with shuttle option
  • 230V single phase and 230 / 460V 3-phase power options
  • Parting line injection
  • Reciprocating screw with 2.5:1 ratio and flame hardened flights
  • Screw assembly choice of bore sizes: 7/8”,  1 1/16”
  • 1 – 2.00 ounce shot size

Model 70

  • Total heater band 2400 – 3000 watts

Model 75

  • Total heater band 2400 – 3000 watts

Model 70 – Hydraulic System

  • Self contained hydraulic power unit
  • 1725 RPM pump motor
  • 6.0 GPM pump
  • 12.5 gallon reservoir
  • Hydraulic manifold with sandwich valves, proportional relief valve and directional valves
  • Manifold mounted at rear of machine for easy maintenance

Model 75 – Hydraulic System

  • Self contained hydraulic power unit
  • 1725 RPM pump motor
  • 6.0 GPM pump
  • 12.5 gallon reservoir
  • Hydraulic manifold with proportional relief valve and directional valves
  • Manifold mounted at rear of machine for easy maintenance

Model 70

  • Aluminum hopper 13 lb. capacity with dump tube
  • Mounting is provided for 5” x 8”, 6” x 8” shuttle bases plus MUD frames
  • Siemens PLC and color HMI
  • Dual injection pressure controlled by both position and time
  • Storage in control memory for recipes and setups

Model 75

  • Aluminum hopper 13 lb. capacity with dump tube
  • Mounting is provided for 5” x 8”, 6” x 8” shuttle bases plus MUD frames
  • Siemens PLC and color HMI
  • Storage in control memory for recipes and setups
